Lightforce

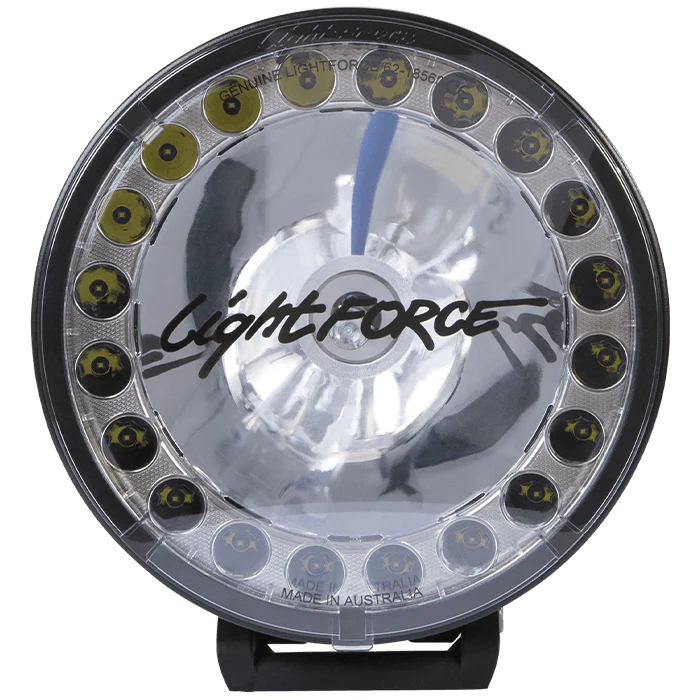

HTX2 HYBRID DRIVING LIGHT TWIN PACK WITH HARNESS

HTX2 HYBRID DRIVING LIGHT TWIN PACK WITH HARNESS

Regular price $1,469.00 AUD
Regular price Sale price $1,469.00 AUD
Sale Sold out
Taxes included.
Pack Type

BEST OF BOTH WORLDS.

Danger lurks in the dark, but HTX2 keeps you safe on your journey. Made right here in Australia to the highest standards possible, HTX2 has no comparison on the road and off the beaten track. It doesn’t just turn heads, it redefines performance lighting..

FUELLED BY FUSION

Forget everything you thought you knew about driving lights. Now try to imagine 1 lux at over 1.65km. The unique combination of a long-distance HID and the equivalent of a 20-inch LED lightbar in one unit provides unparalleled power and light spread.

STRENGTH THROUGH SYNTHESIS

With an all-new aluminium housing that’s fully sealed – and a genuine Gore® breather – HTX2 isn’t just dustproof and “water resistant”, it’s fully waterproof up to 1 metre. No matter what situation you find yourself in, HTX2 will get you through.

PHOTOMETRICS

When we can’t clearly see what’s right in front of us, we’re putting our safety at risk. Compared to typical driving lights, HTX2 illuminates not just the narrow path ahead, but also much more of your periphery.

1 LUX AT OVER 1.65KM WITH SPOT FILTERS INSTALLED

1 Lux at over 1.65km with spot filters installed

1 LUX AT OVER 1.1KM WITH COMBO FILTERS INSTALLED

1 Lux at over 1.1km with combo filters installed

DIMENSION

Technical Drawing

COMPARISION

Headlight Only

Headlight Only

LED Only

LED Only

HID & LED Combo

HID & LED Combo

CHECK OUT ALL THE NEW FEATURES

  • New robust aluminium one-piece housing
  • Increased surface area for better heat management
  • Slimline design to fit most modern bullbars
  • Profile compatible with more frontal crash avoidance systems
  • Modular spot and combo filters, and black covers available
  • More efficient, true 5000K OEM spec Phillips® D1S HID bulb
  • Reliable German OEM spec Osram® ballast for reduced EMI
  • Shielded cables surpassing EMC compliance with CE certification
  • Redesigned seals including a fully integrated waterproof plug
  • Superior ingress protection surpassing IP68 and IP69K level
  • New pre-treatment and UV stabilised powder coated finish
  • Repositioned mounting point with redesigned captive Nyloc® nuts
  • Improved balance, rigidity and strength
  • Easy access point for simple HID bulb replacement

PLUS THE HTX’S ORIGINAL PROVEN FEATURES

  • Twenty domeless 5000K Lumileds® Luxeon ZES LEDs
  • Superior performance and reduced glare
  • The combination of HID and LED offers amazing performance
  • 1 Lux at over 1,650 metres and .25 Lux at over 3,200 metres
  • CRI of 70 plus for better colour rendering and less eye fatigue
  • Genuine Gore® waterproof membrane with mechanical seal
  • Reversible robust mounting base as proven across our LED range
  • Over, under and reverse voltage and thermal overload protection
  • Comprehensive installation instructions for easy DIY installation

SPECIFICATIONS

Globe Type LED|HID
Distance: 1 lux at 1650m (Pair)
Distance: 0.25 lux at 3,300m (Pair)
Effective Lumens 8050
Raw Lumens 8400
Colour Temperature 5000K
CRI 70
Current Draw 6Amps @24V
Wattage 130W
Ingress Protection Rating IP68 and IP69K
Diameter 230mm
Weight 2.3kg including bracket

WHAT'S IN THE KIT

1 x Lightforce HTX2 24V Hybrid Driving Light1 x Lightforce HTX2 Clear Spot Filter1 x Reversible mounting bracket and hardware1 x Matching 4 pin waterproof harness adaptor1 x User Instructions
